21. Biology – phylogeny

[status: written, but incomplete]

21.1. Motivation, prerequisites, plan

21.1.1. Motivation

One of the most important areas of research in biology is that of phylogenetic analysis. This collection of techniques allows us to build an evolutionary tree showing how various species are related.

This type of analysis can also be used in other areas, such as tracing the origin of human spoken languages.

I find phylogenetic analysis to be fascinating because it gives us a sort of “webcam of the gods”, a view of the past (which we cannot see) which brought about the present state of things.

21.1.2. Prerequisites

The 10-hour “serious programming” course.
The “Data files and first plots” mini-course in Section 2
Having the required libraries installed. Install them with:

$ sudo apt install python3-biopython python3-matplotlib

21.1.3. Plan

We will start by looking at a video tutorial of how to build a simple phylogenetic tree by hand. Then we will learn how to the biopython package to construct and visualize trees on that simple problem.

Then we discuss further projects in which we look for data sets to work with, including sets from our own genetic algorithm runs (where we also know the real evolutionary history), human languages (where we do not know the real history), and computer programming languages (where we should know most of the real history).

https://cnx.org/contents/24nI-KJ8@24.18:EmlvXoDL@7/Taxonomy-and-phylogeny

21.2. Start with a video and then make a simple table

Start with this Khan Academy tutorial on phylogenetic trees

Then we take their table of traits. Start with the empty table:

Table 21.2.1 An empty trait table which the class could fill together.
Species	Feathers	Fur	Lungs	Gizzard	Jaws
Lamprey
Antelope
Sea Bass
Bald Eagle
Alligator

and write it on the board. Then fill out the tree on the board with the class. You can discuss what all these animals are, and look them up if necessary.

The table will end up looking like this:

Table 21.2.2 What the trait table should like like once it is filled.
Species	Feathers	Fur	Lungs	Gizzard	Jaws
Lamprey	no	no	no	no	no
Antelope	no	yes	yes	no	yes
Sea Bass	no	no	no	no	yes
Bald Eagle	yes	no	yes	yes	yes
Alligator	no	no	yes	yes	yes

Then use the principle of parsimony to create the phylogenetic tree, following the guidelines in the tutorial. The result should look like what you see in Figure 21.2.1.

../_images/simple-animal-tree-by-hand.png — Figure 21.2.1 The resulting tree from the Khan Academy video example.

Discuss the meaning of parsimony as seen in this example. Connect it to Ockham’s razor.

21.3. Terminology

Clades, taxa, species, genotype, phenotype, …

The tree of life

../_images/Tree_of_life_SVG.svg — Figure 21.3.1 Hillis’s tree of life based on completely sequenced genomes (from the Wikipedia image)

21.4. First steps with biopython

Tutorials are at:

https://taylor-lindsay.github.io/phylogenetics/

and

http://biopython.org/DIST/docs/tutorial/Tutorial.html

The basic format of the library (or the part we will be using; biopython is HUGE) is below. You make a tree from some sort of text-based files (in this case just a string with some letters and parenthesis), then draw the tree. There are a lot of variations on this, but this is the fundemental structure.

from io import StringIO
from Bio import Phylo
from Bio.Phylo.TreeConstruction import DistanceCalculator
t = Phylo.read(StringIO("((a,b),c);" ), format="newick")
Phylo.draw(t)

21.5. Downloading the datasets

Data from opentreeoflife at:

https://tree.opentreeoflife.org/

I tied Streptococcus_mitis_NCTC_12261_ott725 at:

https://tree.opentreeoflife.org/opentree/argus/ottol@175918/Streptococcus

and downloaded the Newick format of the streptococcus subtree here.

with:

$ wget --output-document subtree-ottol-175918-Streptococcus.tre https://tree.opentreeoflife.org/opentree/default/download_subtree/ottol-id/175918/Streptococcus

And downloaded the opentreeoflife data with:

$ wget https://api.opentreeoflife.org/v3/study/ot_2221.tre

You can quickly visualize these datasets with:

import os
import matplotlib
import matplotlib.pyplot as plt
from Bio import Phylo
from Bio.Phylo.TreeConstruction import DistanceCalculator

tree = Phylo.read("ot_2221.tre", "newick")
Phylo.draw(tree)

tree = Phylo.read("subtree-ottol-175918-Streptococcus.tre", "newick")
Phylo.draw(tree)

Both are somewhat interesting to look ar

21.6. Preparing a tree by hand

Now let us prepare a tree where we input it ourselves. The format is like what we saw in the example above: the tree is made with the call Tree( "((a,b),c);" )

But we will make a slightly more interesting tree, the one we worked out in Section 21.2. To do so enter the program in Listing 21.6.1.

Listing 21.6.1 Program which makes a phylogenetic tree from a simple example tree.

#! /usr/bin/env python3
import matplotlib.pyplot as plt
from io import StringIO
from Bio import Phylo
from Bio.Phylo.TreeConstruction import DistanceCalculator

t = Phylo.read(StringIO("((((Eagle,Alligator),Antelope),Sea Bass),Lamprey);" ), format="newick")
Phylo.draw(t)
Phylo.draw(t, do_show=False)
plt.savefig('simple-tree.png')
print('Saved tree to simple-tree.png')

You can adjust the look of this tree. See the discussion in the second tutorial link in the first steps section. We can go through that and adjust our styles a bit and see how our tree looks. That being said, here is what the above program should output:

../_images/simple-tree.png — Figure 21.6.1 A version of the simple tree we deduced earlier.

21.7. Inferring a tree

The problem with the program in Listing 21.6.1 is that it prepares the tree, which you can view with your favorite PNG or SVG file viewer. But it does not find the tree. That is our next goal.

So we want to find the most likely evolutionary tree that would yield the result we see in the Table 21.2.2. This process is called inferring the phylogenetic tree from the table of characteristics.

To do this, we will use the .fa (or fasta) file format to encode the information about traits. The format is fairly simple, with two lines per animal: one with an arrow and the name, like >lamprey, and then one with a single uppercase letter for each trait, like NNNNN. When we put all five animals into a file together, it will look something like:

Listing 21.7.1 simple-animals.fa - Table of traits for the animals we discussed earlier in Table 21.2.2

>Lamprey
NNNNN
>Antelope
NYYNY
>Sea_Bass
NNNNY
>Bald_Eagle
YNYYY
>Alligator
NNYYY

along with a program to infer a tree from it:

Listing 21.7.2 infer_tree.py - A simple program for inferring trees.

#! /usr/bin/env python3

from Bio import Phylo
from Bio import AlignIO
from Bio.Phylo.TreeConstruction import DistanceTreeConstructor
from Bio.Phylo.TreeConstruction import DistanceCalculator

tree_alignment = AlignIO.read('simple-animals.fa', 'fasta')
calculator = DistanceCalculator('identity')
distance_matrix = calculator.get_distance(tree_alignment)
constructor = DistanceTreeConstructor(calculator, 'upgma')
tree = constructor.upgma(distance_matrix)
Phylo.draw(tree)

The output shows the same family links that we obtained by hand, but the tree looks different because the root is placed differently. To fix this, add tree.root_with_outgroup('Lamprey') directly before the final line. The reason this works is it gives the computer a sense of where to start, and creates the connections from there. If we hadn’t included it, as you can see in the figure below, it would have started from the point after the bass split off, giving a skewed view of the tree.

../_images/tree-sample-animals-wrong.svg — Figure 21.7.1 A tree with all the same connections, but the wrong root.

After applying the fix, the tree should look like this:

../_images/tree-sample-animals.svg — Figure 21.7.2 The correctly inferred tree.

You can also view this tree as ascii by replacing the Phylo.draw(tree) with Phylo.draw_ascii(tree).

We can save it to a file by adding a couple more lines:

import matplotlib.pyplot as plt
...

...
tree.root_with_outgroup('Lamprey')
Phylo.draw(tree, do_show=False)
plt.savefig('inferred_tree.png')
Phylo.draw_ascii(tree)

This will save a png formatted view of the tree, as well as showing you an ascii representation.

Now that we have a basic example out of the way, we are going to try a real-world example. This example is on variations a gene called CRAB across species, and can be copy-and-pasted from here.

Listing 21.7.3 a larger fasta format file.

>crab_bovine ALPHA CRYSTALLIN B CHAIN (ALPHA(B)-CRYSTALLIN).
MDIAIHHPWIRRPFFPFHSPSRLFDQFFGEHLLESDLFPASTSLSPFYLR
PPSFLRAPSWIDTGLSEMRLEKDRFSVNLDVKHFSPEELKVKVLGDVIEV
HGKHEERQDEHGFISREFHRKYRIPADVDPLAITSSLSSDGVLTVNGPRK
QASGPERTIPITREEKPAVTAAPK
>crab_chicken ALPHA CRYSTALLIN B CHAIN (ALPHA(B)-CRYSTALLIN).
MDITIHNPLVRRPLFSWLTPSRIFDQIFGEHLQESELLPTSPSLSPFLMR
SPFFRMPSWLETGLSEMRLEKDKFSVNLDVKHFSPEELKVKVLGDMIEIH
GKHEERQDEHGFIAREFSRKYRIPADVDPLTITSSLSLDGVLTVSAPRKQ
SDVPERSIPITREEKPAIAGSQRK
>crab_human ALPHA CRYSTALLIN B CHAIN (ALPHA(B)-CRYSTALLIN).
MDIAIHHPWIRRPFFPFHSPSRLFDQFFGEHLLESDLFPTSTSLSPFYLR
PPSFLRAPSWFDTGLSEMRLEKDRFSVNLDVKHFSPEELKVKVLGDVIEV
HGKHEERQDEHGFISREFHRKYRIPADVDPLTITSSLSSDGVLTVNGPRK
QVSGPERTIPITREEKPAVTAAPK
>crab_mouse ALPHA CRYSTALLIN B CHAIN (ALPHA(B)-CRYSTALLIN) (P23).
MDIAIHHPWIRRPFFPFHSPSRLFDQFFGEHLLESDLFSTATSLSPFYLR
PPSFLRAPSWIDTGLSEMRLEKDRFSVNLDVKHFSPEELKVKVLGDVIEV
HGKHEERQDEHGFISREFHRKYRIPADVDPLAITSSLSSDGVLTVNGPRK
QVSGPERTIPITREEKPAVAAAPK
>crab_rabbit ALPHA CRYSTALLIN B CHAIN (ALPHA(B)-CRYSTALLIN).
MDIAIHHPWIRRPFFPFHSPSRLFDQFFGEHLLESDLFPTSTSLSPFYLR
PPSFLRAPSWIDTGLSEMRLEKDRFSVNLDVKHFSPEELKVKVLGDVIEV
HGKHEERQDEHGFISREFHRKYRIPADVDPLTITSSLSSDGVLTVNGPRK
QAPGPERTIPITREEKPAVTAAPK
>crab_rat ALPHA CRYSTALLIN B CHAIN (ALPHA(B)-CRYSTALLIN).
MDIAIHHPWIRRPFFPFHSPSRLFDQFFGEHLLESDLFSTATSLSPFYLR
PPSFLRAPSWIDTGLSEMRMEKDRFSVNLDVKHFSPEELKVKVLGDVIEV
HGKHEERQDEHGFISREFHRKYRIPADVDPLTITSSLSSDGVLTVNGPRK
QASGPERTIPITREEKPAVTAAPK

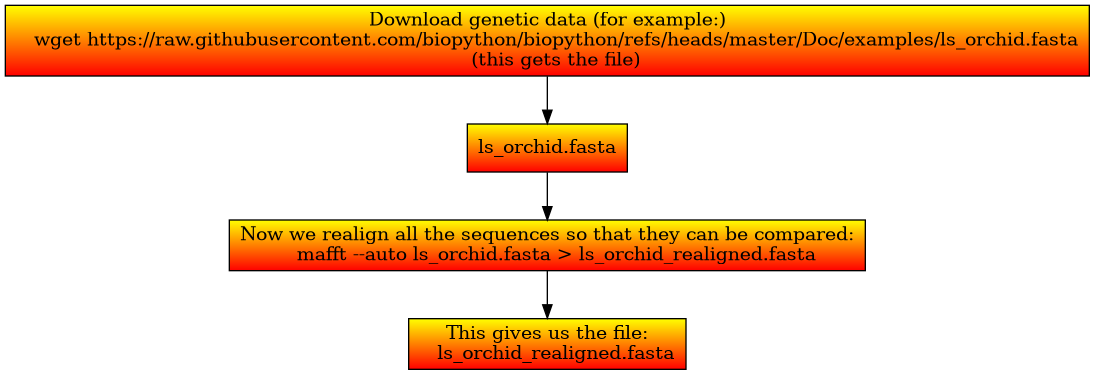

Note that you may have to trim the ends of the sequences to match the length; while this may loose some information contained in the sequences, it is small enough where the overall pattern will still show in the plot. We can reuse our tree-inferring program from earlier (make sure to change the file to the CRAB one and remove the line that sets the root), and it should produce something like Figure 21.7.3:

../_images/CRAB-phylo-tree.svg — Figure 21.7.3 A graph showing the differences in the CRAB gene.

This graph shows a trend that makes a lot of sense: the mammals are all closely related, and the chicken is not closely related to them. In addition, the rat and mouse are closely related, which makes sense. The human in most closely related to the rabbit, and then the cow.

Biopython allowed us to learn all that information from meaningless (to us) sequences of letters. This can be incredibly useful for building phylogenetic trees, because you can simply plug in the genomes you are comparing and it will tell you how they are related. It’s not perfect, as we saw, and you may have to define an outgroup to “orient” the program. But other than that, it worked very well, and could build both or specifically engineered tree and a real example of a genome.

This is only a small taste of what biopython can do, and exploring it further would be reqrding for those with an interest in biology. The documentation and examples can be found here.

21.8. Other sequence analysis resources

Berkeley evolution course. 7 organisms and 7 features: https://evolution.berkeley.edu/evolibrary/article/phylogenetics_07

Cute with ladybugs, but just 6 elements and 7 features: https://bioenv.gu.se/digitalAssets/1580/1580956_fyltreeeng.pdf

Another video giving step-by-step for building a tree by hand: https://www.youtube.com/watch?v=09eD4A_HxVQ

21.9. Linguistics datasets

First discuss the issues of generating a string representation of language features. One example of the issues involved is given in this article:

https://brill.com/view/journals/ldc/3/2/article-p245_4.xml?lang=en

where they discuss how to align the English “horn” with the latin “kornu”. This then allows you to define a “genetic distance” between the same word in two different languages. One such measure is the “Levenshtein normalized distance” (LDN), which takes values between 0 and 1.

This can then be used with the ASJP (Automated Similarity Judgement Program) https://en.wikipedia.org/wiki/Automated_Similarity_Judgment_Program database which is based on a word list. The database is at https://asjp.clld.org/

Download the database from

https://asjp.clld.org/download

and look at the listss18.txt file and see how languages we know (English, Italian, Spanish, Russian) are represented.

Look at the results in WorldLanguageTree001.pdf

One oft-used list is the the Swadesh list https://en.wikipedia.org/wiki/Swadesh_list which has 100 terms. Some of these are “I”, “you”, “we”, “this”, “that”, “person”, “fish”, “dog”, “foot”, “hand”, “sun”, “mountain”, various basic colors, and so forth. There is also an abbreviated 35-word list. The ASJP uses a 40-word list, similar to the Swadesh list.

Each part of a word gets an ASJP code and an IPA (International Phonetic Alphabet) designation of how it’s pronounced.
